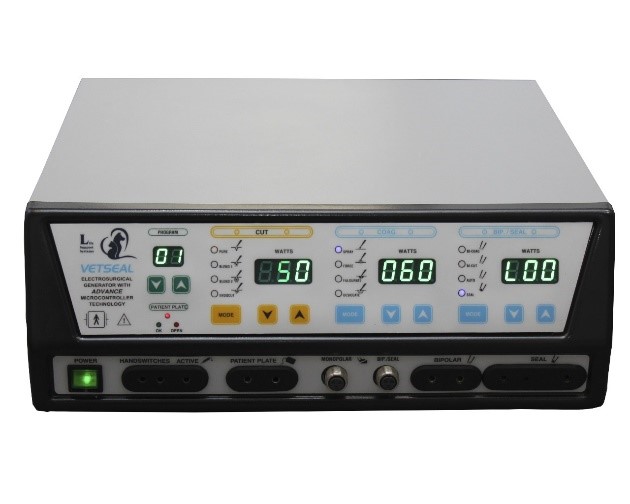

400 W DIGITAL, PROGRAMMABLE 400 W, ELECTROSURGICAL UNITS WITH 150 W VESSEL SEALER
Electrosurgical vessel sealing is a specialize system developed for minimal access and open surgery. This technology can facilitate a range of minimal access surgical procedures, objectives of reduced length of stay for patients in hospital. Each of these devices comprises an electrosurgical unit (ESU) with a high power and low voltage bipolar mode and specialist instruments that combine tissue compression with tissue heating to produce haemostasis in arteries, veins or a bundle of tissue. This is a technology which is different from conventional diathermy and provides a unique combination of pressure and energy to create vessel fusion and permanently fuses vessels up to and including 7 mm in diameter and tissue bundles, without dissection or isolation. An optimized combination of pressure and energy creates the seal by melting the collagen and elastin in the vessel walls and reforming it into a permanent, plastic-like seal and results in virtually no sticking or charring. It does not rely on a proximal thrombus. Feedback-controlled response system automatically discontinues energy delivery when the seal cycle is complete, eliminating the guesswork.
Product Feature
CUT MODE
PURE - A high-frequency alternating current yeild smooth, rapid cuts that tha evoke little to no hemostasis.
BLEND 1 - Preset blended cut modes give the surgreon varying degrees of hemostasis in cut mode.
BLEND 2 - The mode is used for the vaprization of prostatic tissue or any fat tissue. The higher output wattage gives fast cutting effect of the tissue.
ENDCUT - The mode is used to automatically control cut system to reduce the complication rate of endoscopic sphincterotomy (EST) and serum hypermylasemia after EST compared to conventional blended cut mode.
Technical Specification
| CUT MODE | ||||
Mode |
Power |
Load |
Creast Factor |
|
PURE CUT |
400 W |
300 Ω |
1.5 |
|
Blend 1 |
250 W |
300 Ω |
1.5 |
|
Blend 2 |
200 W |
300 Ω |
1.5 |
|
Endcut |
99% |
300 Ω |
1.5 |
|
Product Feature
COAG MODE
SPRAY - Spray output is made for direct coagulation at tissue with spark. This spark does not give any cutting effect as its crest factor is high.
FORCE - This mode is a greater degree of homeostasis and cover all demands of standard coagulation. This produce the fine tune waveform that creates superficial resistance in the tissue resulting in superior coagulation where the tissue destroyed bby hyper evaporation.
FULGURATE - Sparking the tissue to lead to coagulation. There is no tissue-electrode contact; rather, voltage is raised in order to incite a spark between electrodes in orther to coaglute the tissue in between.
DESICCATE - Coagulation in which the active electrode is in direct contact with the tissue is referred to as desccation and is the type of coagulation used in most surgeries. It ensures pinpoint desiccation with less destruction of peripheral tissue.
Technical Specification
| COAG MODE | ||||
Mode |
Power |
Load |
Creast Factor |
|
SPRAY |
120 W |
300 Ω |
7 |
|
FORCE |
120 W |
300 Ω |
6.5 |
|
FULGURATE |
150 W |
300 Ω |
6 |
|
DESICCATE |
150 w |
300 Ω |
6 |
|
Product Feature
BIPOLAR MODE
BI-COAG - for highly precise control over coagulation process and privation of carbonization.
BI-CUT - Bipolar CUT techinologu lets you nearly eliminate excessive current, even during precision cutting in minute tissue structure.
AUTO - Coagulation start by pressing the footswitch and stops output and audio signal automatically when the tissue is coagulated.
SEAL - This mode provides unique combination of pressure & energy to create vessel fusion, leaving no foreign mateiral behind. Easemed designed special feature that seal as well as cut simultaneously used help of sealer instrument using programme 5&6 for surgery.
Technical Specification
| BIPOLAR | ||||
Mode |
Power |
Load |
Creast Factor |
|
BI-COAG |
80 W |
100 Ω |
1.5 |
|
BI-CUT |
80 W |
100 Ω |
1.5 |
|
SEAL |
150 W |
100 Ω |
1.5 |
|
AUTO |
100 w |
100 Ω |
1.5 |
|
Standard Accessories
Chuck Handle with Electrodes Autoclavable
Bipolar Forcep with Cable Autoclavable
Monopolar/Bipolar & Seal Double Pedal foot Switch
Disposable Hand Switch Pencil
Patient Plate with Code
Silent Features
99 program modes: User settable program mode
Frequency : 480 khz(Monopolar)
Frequency : 1 Mhz(Seal Mode)
Display - 7 Segment LED
Weight - 7.5 KG
Dimension : L 440mm X W 355mm X H 155mm
Input Supply Voltage : 110V/230 VAC(+/-15%) 50 Khz
Separates Monopolar & Bipolar / Seal foot-switches
